PROJECTS

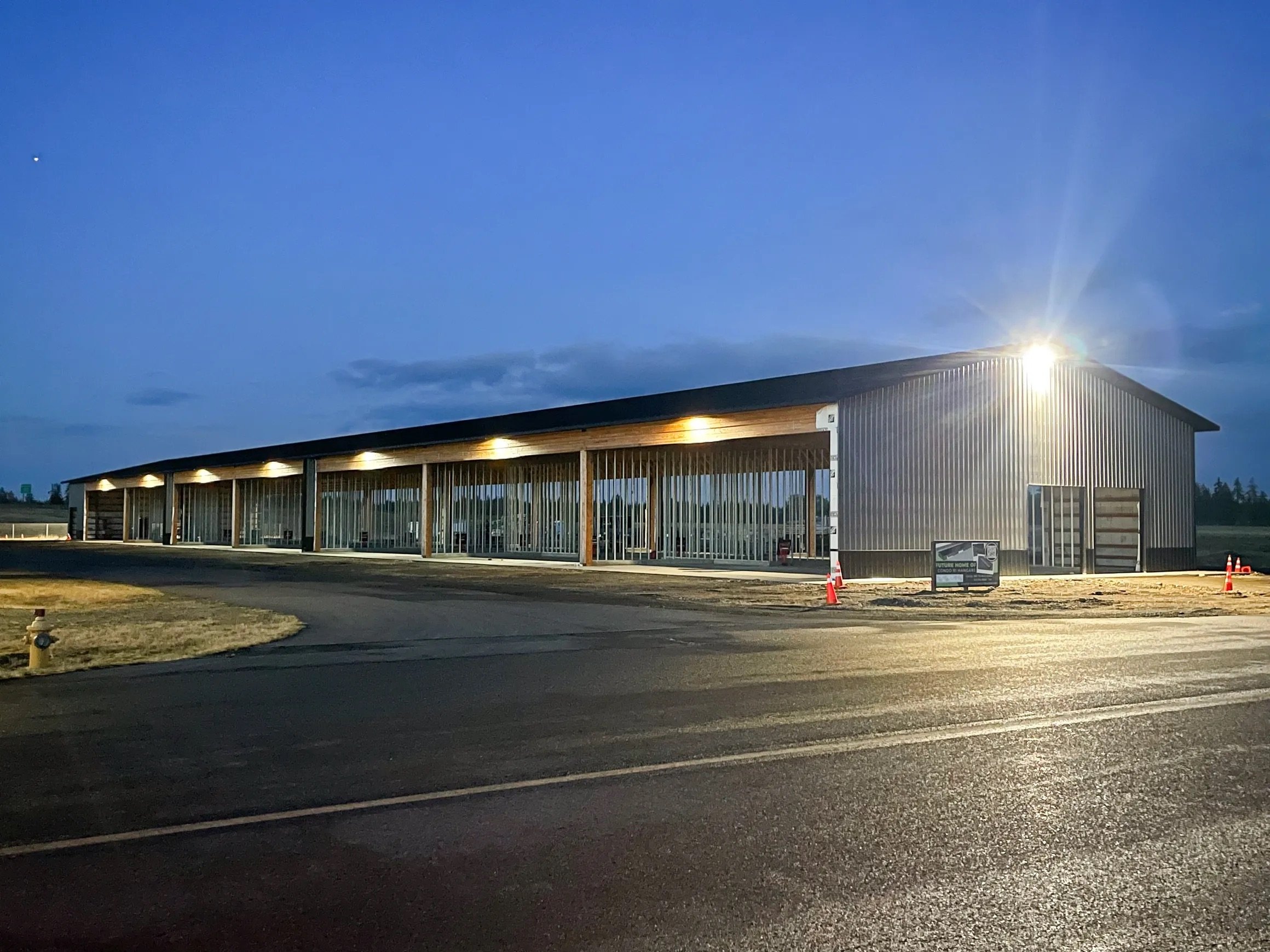

Shelton Condo Hangar 91

New premium 60’x340’x19’ T-hangar with 14 fully insulated units with heated floors
KSHN Sanderson Field Airport in Shelton, WA
- Ten units @ 1360 sqft
- One unit @ 1534 sqft
- One unit @ 1564 sqft
- One unit @ 1806 sqft
- One unit @ 1836 sqft
- Schweiss Bifold Door with lift straps and mandoor; R-21 insulation with white WMPVRR backing (1,836 sqft & 1,806 sqft units will have a 46’x14’ hangar door. All other units will have a 44’x14’ hangar door)
- Units 1, 7 & 14 will have one 9’x10’ insulated overhead garage door and unit 8 will have one 10’x10’ insulated overhead garage door
- 26-gauge standing seam roof over plywood/OSB decking
- 29-gauge walls with 3’ wainscoting around the bottom perimeter
- Fully insulated with R-21 in exterior walls, R-13 in separation walls and R-49 in the ceiling
- Natural gas hydronic floor heat with R-10 rigid foam insulation. Each unit will have their own manifold with a micro switch to shut off the heat when the hangar door is open.
- Sheetrocked and painted
- 25” overhang around the perimeter with enclosed metal soffits
- 4” concrete floor with fibermesh and saw cut joints
- Each unit will have a sub panel capable for 50 amp service
- Bright LED Lighting
- Wired for high-speed internet
2025
